Instant hot water dispensers have dominated the under-sink conversation for years, but the demand for consistently cold, filtered water on tap is finally catching up. An under-sink water chiller eliminates the need for a bulky countertop pitcher or a refrigerator dispenser that may not exist in your kitchen, delivering restaurant-quality cold water directly from a dedicated faucet.
I’m Mohammad Maruf — the founder and writer behind AirfryerBite. I’ve spent years analyzing water filtration hardware, cooling system specifications, and real user installation feedback to separate the high-performance units from the problematic ones.
Whether you are replacing bottled water delivery, upgrading an existing RO system, or building a kitchen from scratch, this guide covers the best under sink water chiller options available today across budget, performance, and installation complexity levels.
How To Choose The Best Under Sink Water Chiller
An under sink water chiller is more than a simple filter — it is a plumbing-integrated appliance that demands careful consideration of cooling capacity, filter type, physical dimensions, and power requirements. Choosing the wrong system can result in tepid water, excessive noise, or a cabinet that cannot close.
Cooling Capacity vs. Flow Rate
The two most critical numbers for an under sink chiller are its cooling capacity, measured in liters per hour, and its flow rate, measured in gallons per minute (GPM). Cooling capacity tells you how much cold water the unit can produce continuously before the internal compressor or thermoelectric cooler needs to recover. A unit rated at 10 liters per hour can serve a family of four through a busy morning without the water turning lukewarm. Flow rate determines how fast a glass fills — 0.4 GPM or higher ensures you are not waiting several seconds for a single cup.
Filtration Integration: Dual Filter vs. Pre-Filter Only
Not every under sink water chiller includes its own filtration stage. Some units assume you already have a dedicated reverse osmosis or carbon block filter upstream. Others, like the Avalon chiller, integrate a sediment and carbon block filter directly into the chiller unit. Systems with integrated dual filtration save under-sink space by combining both functions in one housing, but they also require you to track two different filter replacement schedules. If your kitchen already has an RO system, a chiller that accepts pre-filtered water reduces maintenance complexity.
Physical Footprint and Installation Requirements
Under sink water chillers are not small. The Avalon chiller measures 14.76 x 10.83 x 13.98 inches — roughly the size of a medium microwave laid on its side. Before buying, measure your cabinet’s depth, width, and height, and account for existing items like garbage disposals, cleaning supplies, and plumbing. Most chillers require a dedicated electrical outlet under the sink, a 1/4-inch or 3/8-inch cold water supply line connection, and a drain line for condensed water. Some units also require a separate faucet hole on the sink deck or countertop.
Certification and Material Safety
NSF certifications matter for any appliance that touches your drinking water. Look for NSF/ANSI 42 (taste and odor reduction), NSF/ANSI 53 (health contaminant reduction), and NSF/ANSI 372 (lead-free material compliance). The Waterdrop and Delta units carry multiple NSF certifications, while the Philips system is NSF/ANSI 372 certified and FCC certified for electrical safety. BPA-free construction and stainless steel cold water tanks are preferred over plastic reservoirs, which can retain odors over time.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Avalon High Capacity Chiller | Dedicated Chiller | Consistent cold water with dual filtration | 10 L/hr cooling capacity | Amazon |
| Waterdrop KJ600 | RO + Heater | Hot and cold on demand | 600 GPD, 2:1 drain ratio | Amazon |
| Philips AUT9360 | Tankless RO | Compact high-performance RO | Aquaporin Inside membrane | Amazon |
| Waterdrop G3P600 | Tankless RO | Smart display with TDS monitoring | 8-stage filtration | Amazon |
| Delta Clarifi DWQ1001012 | Tankless RO | Top certification and warranty | 5 NSF certifications | Amazon |
| VIOMI Vortex 6 | Tankless RO | Value with NSF certification | 9-stage, 600 GPD | Amazon |
| Ecoviva 600GPD | Tankless RO | Low noise and small footprint | 0.42 gal/min flow rate | Amazon |
| Ready Hot 41-RH-200 | Hot Water Dispenser | Instant near-boiling water | 1300 watt, 2.5 quart tank | Amazon |
| InSinkErator HWT-00 | Hot Water Tank | Reliable instant hot replacement | 0.67 gallon, 750 watt | Amazon |
In‑Depth Reviews

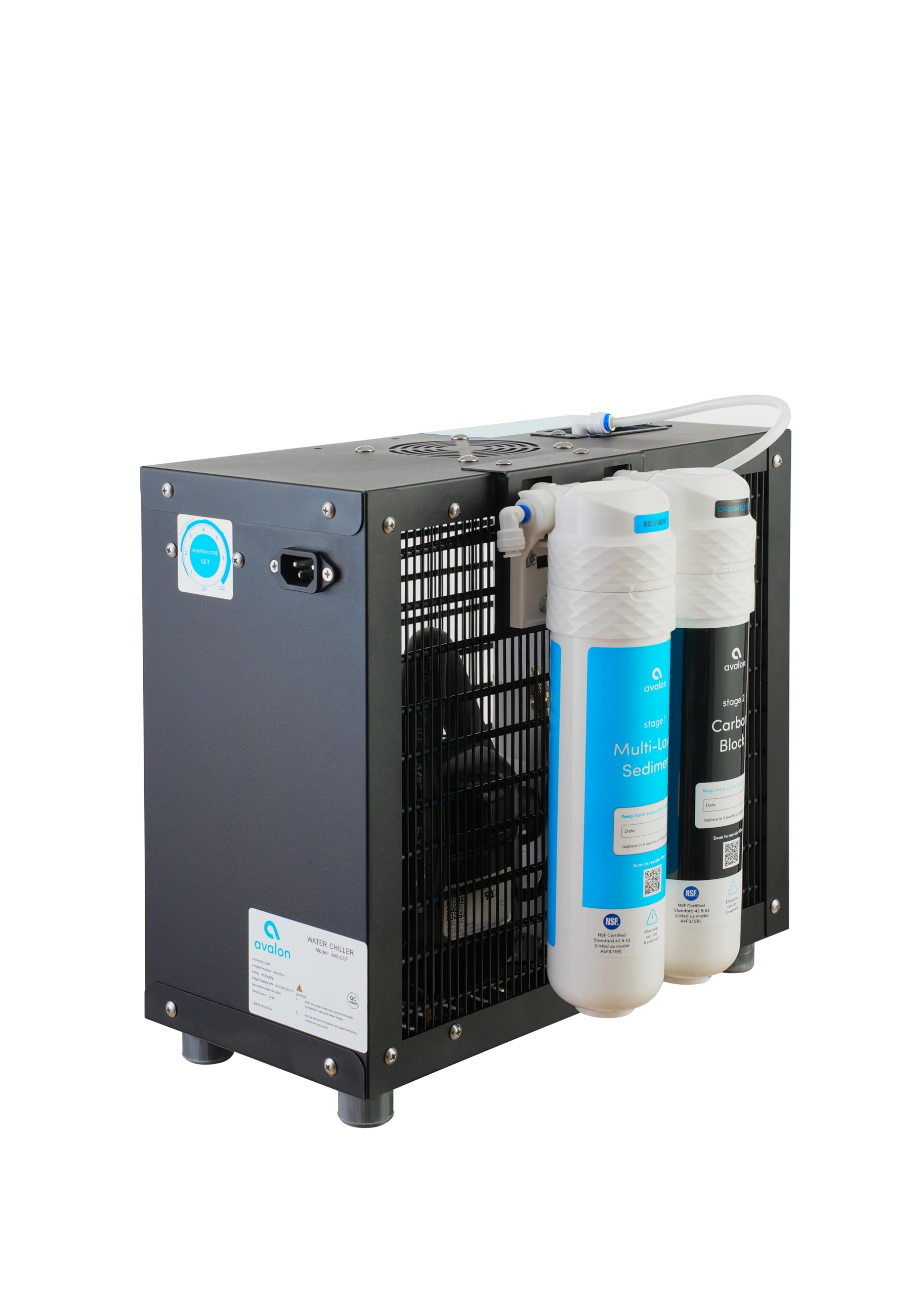

1. Avalon High Capacity Chiller Cooling System
The Avalon A40-CCF is the only product on this list built specifically as a dedicated under-counter water chiller with integrated dual filtration. Its 10-liter-per-hour cooling capacity is sufficient for a family of five during peak usage — morning hydration, lunch prep, and dinner drinks — without the water ever drifting above truly cold temperatures. The stainless steel construction resists corrosion, and the external filter housing makes replacements straightforward without pulling the entire unit out from under the sink.
Installation took about 30 minutes for a moderately experienced DIYer, with clear illustrations included in the kit. The 10-foot insulated tubing and 3/8-inch adapter with shut-off valve cover most standard plumbing configurations. Owners consistently report that the water stays consistently cold even during back-to-back fills, and the dual filtration (sediment plus carbon block) removes the chemical taste common in municipal tap water. Carbon block filters last roughly 6 months or 1,500 gallons, keeping operating costs predictable.
The only notable limitation is physical size — at 14.76 x 10.83 x 13.98 inches, this unit requires significant under-sink real estate. Plan around existing disposals, plumbing, and cleaning supplies before committing. The 10 L/hr cooling capacity also means it is a dedicated cold-water system with no hot water option, so if you need both hot and cold, look at a combined unit further down this list.
Why it’s great
- True dedicated chiller with consistent 10 L/hr performance
- Integrated dual filtration removes sediment and improves taste
- Stainless steel build and straightforward install kit
- Externally mounted filters for easy replacement
Good to know
- Large footprint requires careful under-sink planning
- No hot water dispensing function
- Installation is more complex than a simple filter swap
2. Waterdrop KJ600 Reverse Osmosis System with Hot Water
The Waterdrop KJ600 is a rare category hybrid — a 600 GPD tankless reverse osmosis system that also dispenses instant hot water at adjustable temperatures from 104°F up to 203°F. This eliminates the need for a separate kettle or instant hot dispenser while still delivering filtered cold water for drinking. The smart display faucet shows TDS levels, filter life, and water dispensing temperature, and includes a child lock to prevent scalding.
Owners report TDS reduction from 200+ ppm down to 5 ppm even after two years of use with a family of four. The 2:1 pure-to-drain ratio is efficient, producing only one cup of wastewater for every two cups of filtered water. The heating element is fast — water reaches 203°F within seconds of the preset, making it practical for pour-over coffee, instant oatmeal, and tea without waiting for a stovetetle to boil. The Teflon tubing is rated to 500°F, so there is no risk of melting under normal use.
The main trade-off is physical size. The base unit measures 17.5 x 6.7 x 16.6 inches and takes up roughly 25% of a standard under-sink cabinet. The system also produces some audible noise during its pump and heating cycles. A few users noted the touch sensor on the faucet is unreliable with wet fingers, though customer support reportedly handled replacements quickly. If you have the space and need both hot and cold filtered water from one system, this is the most capable all-in-one solution available.
Why it’s great
- True all-in-one: RO filtration plus instant hot water
- Adjustable hot water temperature from 104°F to 203°F
- Low 2:1 drain ratio saves water compared to traditional RO
- Smart faucet with TDS and filter life display
Good to know
- Large footprint requires significant under-sink space
- Audible pump and heating noise during operation
- Cannot connect to a refrigerator or ice maker

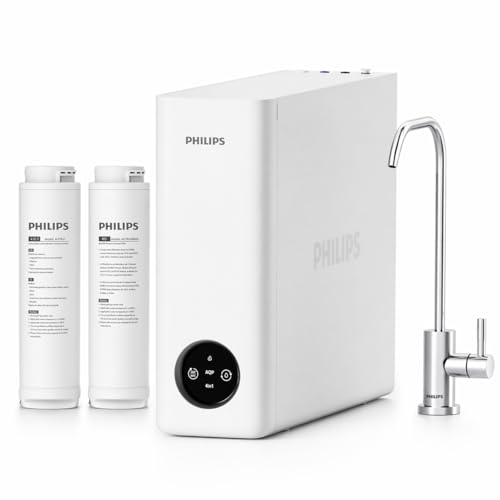

3. Philips AUT9360 Reverse Osmosis System
Philips brings its health technology pedigree to the under-sink RO category with the AUT9360, a 600 GPD tankless system that uses Aquaporin Inside biomimetic membrane technology. Aquaporin proteins — nature’s own water channels — are integrated into the RO membrane to deliver highly selective filtration while maintaining stable performance across the filter’s lifespan. This technology was tested in collaboration with NASA and ESA, giving it a level of engineering validation rarely seen in residential water filters.
Real-world performance backs the claims. Owners report input TDS between 385-400 ppm dropping to 5-6 ppm output, with water that tastes noticeably cleaner than tap. The 2.3:1 pure-to-drain ratio is among the best of any RO system on this list, and the 4-in-1 filter lasts 12 months while the RO filter lasts 24 months. The tankless design measures just 15.8 x 4.3 x 12.3 inches and supports both vertical and horizontal mounting, making it adaptable to tight cabinet configurations.
The installation instructions have a notable blind spot — the supplied T-valve uses a 1/2-inch NPT fitting, but many US homes use 3/8-inch compression. The included dust plug on the system also needs manual removal before operation, which is not clearly noted in the manual. The unit requires a dedicated electrical outlet, and the drain connection setup can be tricky on single-basin farmhouse sinks. Customer support is responsive — multiple users reported excellent service when requesting correct adapters or replacement parts.
Why it’s great
- Aquaporin Inside biomimetic membrane for selective filtration
- Compact tankless design with horizontal mounting option
- Excellent TDS reduction from 385 to 5-6 ppm
- NSF/ANSI 372 and FCC certified for safety
Good to know
- Inlet T-valve may require 3/8-inch adapter for US plumbing
- Dedicated electrical outlet is mandatory
- Installation instructions skip the dust plug removal step
4. Waterdrop G3P600 Reverse Osmosis System
The Waterdrop G3P600 is one of the most certified tankless RO systems in this price tier, carrying NSF/ANSI 42, 53, 58, and 372 certifications. Its 8-stage filtration process reduces TDS, chromium, PFAS, radium, fluoride, arsenic, and chlorine, making it a strong choice for households concerned about a wide range of municipal water contaminants. The smart display faucet shows real-time TDS levels and filter life, giving you immediate feedback on water quality without separate testing strips.
Owners consistently praise the easy 3-second filter changes, which require no tools and no system movement. The 600 GPD flow rate fills an 8-ounce cup in about 8 seconds, and the 2:1 pure-to-drain ratio keeps wastewater relatively low. The unit measures 18.12 x 5.67 x 17.72 inches, which is longer than some competitors but still fits standard under-sink cabinets if you plan ahead. The UV light option on some SKUs adds microbial reduction for those on well water.
A small but persistent issue is that the tubing is rigid and can be difficult to route in cramped cabinets. A few owners also reported initial TDS readings higher than expected until the system was fully flushed — Waterdrop customer service sent free replacement filters to address this, and TDS dropped to expected levels afterward. If you prioritize filter change simplicity and want a comprehensive set of official certifications, this is a well-supported option.
Why it’s great
- NSF/ANSI 42, 53, 58, and 372 certified
- 8-stage filtration covers a broad contaminant spectrum
- Tool-free, 3-second filter changes
- Smart faucet with real-time TDS and filter life display
Good to know
- Rigid tubing makes cabinet routing challenging
- Requires a dedicated electrical outlet
- Initial flush may take longer than expected
5. Delta Faucet Clarifi DWQ1001012
Delta’s Clarifi system sets the benchmark for certification in this category, meeting five separate NSF standards: NSF-58 (RO systems), NSF-42 (aesthetic effects), NSF-53 (health effects), NSF-401 (emerging compounds), and NSF-372 (lead-free material). It is proven to remove over 90 contaminants including microplastics, total PFAS, lead, arsenic, chlorine, chromium, copper, TDS, mercury, and pharmaceuticals. For anyone who wants the strongest possible guarantee of what is being removed from their water, this is the unit to beat.
The tankless design uses a 2:1 filtered-to-waste ratio, certified by ANSI to exceed standard RO efficiency metrics. Filter replacement is tool-free and synchronized — both the RO filter and the carbon block filter last roughly 2 years, so you only need to remember one replacement schedule. The unit measures 18 x 6.25 x 16 inches and requires a dedicated electrical outlet. A wireless switch for the garbage disposal can help if you need to free up the outlet.
The biggest complaint across multiple owners is noise level. Several users describe the pump and repressurization cycle as “shockingly loud” or “like a jackhammer.” While some users found that vibration-isolating feet and careful tube routing resolved most of the noise, others found it unacceptable even after professional installation. If your kitchen is open-concept or the under-sink area is near a living room, the noise could be a dealbreaker. Delta backs the unit with a Lifetime Limited Warranty, which provides peace of mind but does not fix the decibel issue at the source.
Why it’s great
- Five NSF certifications covering 90+ contaminants
- 2-year synchronized filter life for simple maintenance
- Lifetime Limited Warranty from a major brand
- Compact tankless design with efficient 2:1 waste ratio
Good to know
- Pump noise is a common complaint across many units
- Professional installation recommended for optimal noise reduction
- Requires dedicated electrical outlet
6. VIOMI Vortex 6 600GPD RO System
The VIOMI Vortex 6 is a 9-stage tankless RO system that delivers 600 GPD with NSF/ANSI 42, 53, and 372 certification at a price point significantly below the premium competitors. The 9-stage filtration includes a 0.0001μm RO membrane that can reduce TDS by up to 94.75%, with targeted reduction rates of PFOS over 99.88% and PFOA over 99.6%. For households on a budget that still want certified contaminant reduction, this is a strong mid-range option.
The tankless design measures just 16.3 x 5 x 12.8 inches, saving up to 65% of under-sink space compared to traditional tanked systems. The smart LED faucet turns orange to signal when filters need replacement, and the RO filter lasts up to 48 months while the PCB filter lasts 24 months. The 3:1 pure-to-drain ratio is less efficient than the Philips or Waterdrop units but still uses 300% less water than traditional 1:1 tanked systems.
Several users noted the system is slightly noisier than competing units, though the included vibration-reducing pads help. The system also requires two holes — one on the countertop for the RO faucet and a second under the sink for the drain pipe — and cannot connect to a refrigerator or ice maker. A few owners reported difficulty reaching customer support when issues arose. If certified filtration and 600 GPD flow matter more than absolute silence or fridge connectivity, this offers good value.
Why it’s great
- NSF/ANSI 42, 53, and 372 certified at a competitive price
- 9-stage filtration with high PFOS and PFOA reduction
- Compact tankless design saves significant under-sink space
- 48-month RO filter life reduces long-term maintenance costs
Good to know
- Audible pump noise even with vibration pads
- Cannot connect to refrigerator or ice maker
- Requires two holes: countertop and drain pipe
7. Ecoviva 600GPD Reverse Osmosis System
The Ecoviva 600GPD tankless RO system differentiates itself through exceptionally quiet operation — rated at 48 decibels during water production, roughly equivalent to a whisper. This makes it the best choice for kitchens adjacent to living rooms or bedrooms where pump noise is a concern. The system includes six automatic flush modes plus one manual flush to maintain membrane health without secondary pollution.
The 2.5:1 pure-to-drain ratio is 370% more efficient than many traditional RO systems that claim 3:1, 4:1, or even 5:1 ratios. The faucet uses a color-coded LED indicator — blue for healthy filter life, blinking red for a warning, and solid red when replacement is needed. The tankless one-piece design measures 8.26 x 19.68 x 18.5 inches, which is deeper than some competitors but still fits most standard cabinets.
Multiple owners praised the easy installation and small footprint, though one critical 1-year review noted that the unit was discontinued and replacement filters were no longer available from the manufacturer. This is a significant risk — if you buy this system, verify that replacement filters are in stock and likely to remain available. The manual also lacks instructions for connecting to a refrigerator, which requires a separate accumulator tank. For noise-sensitive households, the whisper-quiet pump is a genuine advantage, but filter availability is a real concern.
Why it’s great
- Extremely quiet operation at 48 dB
- Efficient 2.5:1 pure-to-drain ratio
- Color-coded filter life indicator on faucet
- Six automatic flush modes for membrane longevity
Good to know
- Replacement filter availability may be inconsistent
- No refrigerator connection without additional accumulator tank
- Manual lacks fridge connection instructions
8. Ready Hot 41-RH-200-F560-CH Instant Hot Water Dispenser
While this guide focuses on water chillers, the Ready Hot 41-RH-200 is included because it addresses the opposite half of the temperature spectrum that many chiller buyers also need. This is an instant hot water dispenser, not a chiller — but many kitchens use both a chiller and a hot water dispenser under the same sink. The Ready Hot unit produces over 60 cups of near-boiling water per hour from a 2.5-quart stainless steel tank with a 1300-watt heating element.
The manual temperature control knob allows adjustment from 140°F to 200°F, and the dual-lever faucet provides both hot and cold water from the same spout. The self-resetting thermal fuse prevents tank burnout during accidental dry startup. Owners consistently praise the build quality — the faucet is solid metal with a polished chrome finish that looks premium on any sink deck. The unit is also well-suited as a replacement for older or leaking hot water dispensers from other brands.
Installation requires a 1-3/8-inch hole for the faucet, and the tank rests on rubber feet under the sink. The instructions are adequate but could be clearer for first-time installers. Some owners reported occasional spitting from the faucet or cold water spurts during the heating cycle. The Ready Hot hot water tank is backed by a 3-year warranty, and the faucet carries a 1-year warranty. If you pair this with a dedicated under-sink chiller, you get both boiling and cold water from one cabinet.
Why it’s great
- Produces 60+ cups of near-boiling water per hour
- Adjustable temperature from 140°F to 200°F
- Premium solid metal faucet with polished chrome finish
- Dry-start protection extends tank lifespan
Good to know
- Occasional spitting or cold water spurts during heating
- Installation instructions could be clearer
- Requires a 1-3/8-inch faucet hole
9. InSinkErator HWT-00 Instant Hot Water Tank
The InSinkErator HWT-00 is the standard replacement tank for the brand’s instant hot water dispensers, and it has been on the market long enough to build a strong reputation for reliability. The 0.67-gallon stainless steel tank uses a 750-watt heating element with an adjustable temperature control knob, typically set at the factory to around 200°F for optimal performance. The dry-start protection prevents damage if the tank is accidentally plugged in without water.
Owners consistently report 6 to 8 years of trouble-free operation before needing replacement, which is a strong lifespan for an under-sink appliance. The tank connects tool-free to the faucet and requires a standard electrical outlet under the sink. It is also compatible with InSinkErator’s under-sink water filtration systems for reducing PFOA, PFOS, lead, chlorine, and other contaminants. The 3-year “We Come to You” warranty is one of the best in the category.
The most common failure mode is corrosion of the aluminum lining around year 7 or 8, which can cause slow leaks. Hard water accelerates this process and requires descaling every 3 to 6 months. If you have hard water, budget for a water softener or plan for more frequent descaling. The tank is also strictly a hot water device — there is no cold water chilling function, and the tank cannot be used to chill water. For households that already have a separate chiller or are fine with cool tap water, the HWT-00 is a reliable hot water addition.
Why it’s great
- Proven 6- to 8-year lifespan with consistent performance
- Dry-start protection and tool-free connections
- Adjustable temperature control from 140°F to 200°F
- 3-year “We Come to You” warranty
Good to know
- Hard water requires regular descaling every 3-6 months
- Aluminum lining may corrode after 7-8 years
- Pure hot water tank with no chilling function
FAQ
Do I need a separate electrical outlet for an under sink water chiller?
Can I connect an under sink water chiller to my refrigerator?
Will an under sink water chiller fit in my cabinet with a garbage disposal?
What is the difference between a dedicated chiller and an RO system with a cold water faucet?
How often do I need to replace filters on an under sink water chiller?
Final Thoughts: The Verdict
For most users, the under sink water chiller winner is the Avalon High Capacity Chiller because it is the only dedicated cold-water chiller with integrated dual filtration on this list, delivering consistently cold water at 10 L/hr for a family-sized household. If you want hot and cold from one system, grab the Waterdrop KJ600 — it combines 600 GPD RO filtration with instant hot water at adjustable temperatures up to 203°F. And for maximum contaminant removal with the strongest certifications on the market, nothing beats the Delta Clarifi DWQ1001012, provided you can tolerate its pump noise or isolate it with proper installation.
